Meta Machine uxc3000 uxc3100 uxc3200 uxc3300

UXC3000

pdf UXC3000 Datasheet

pdf UXC3000 规格书

pdf UXC3000 Drivers

Request A Quick Quote
Specification：4U server on a rack
CPU：2x Intel_6330_Xeon_2.0GHz_28C_42M_205W
GPU：8x China-made GPU MTT S3000, FP32 computing power of at least 15TFLOPS, video memory of at least 32GB, DP display interface support, GPU virtualization support
Memory：16x 16GB DDR4 3200 MHz ECC-RDIMM
Hard disk：6x U.2 1.92T NVMe PCIe 4.0 x4 HS SSD
Network card：1x NIC_25Gbps_2Port_LC_OEM_E810_OCP3.0_MM
Power：4x 2000W Platinum 220VACor240VDC Hot-Swap Power Supply
Platform for AI Content Creation（AIGC）：

a. Support for Chinese and English, as well as various graphic input modes (sticky strokes, photos, real paintings, AI paintings)

b. Support for various graphic editing programs (partial replacement, edge expansion, similarity generation, image super-segmentation, etc.)

c. Allow for the customization of different resolutions and generation quality.

d. Text generation assistance (couplets, poetry generation, open dialogue, classical Chinese generation, novel continuation, etc.)

Platform for digital human production

a. 3D reconstruction, real-time rendering, voice reproduction, intelligent perception, and interaction are all supported.

b. Compatible with a variety of rendering formats and software, including CC, UE, and RaysEngine (domestic rendering pipeline)

c. It is compatible with domestic GPUs.

Tools for monitoring, operation, and maintenance
Technical assistance, maintenance, and upgrades

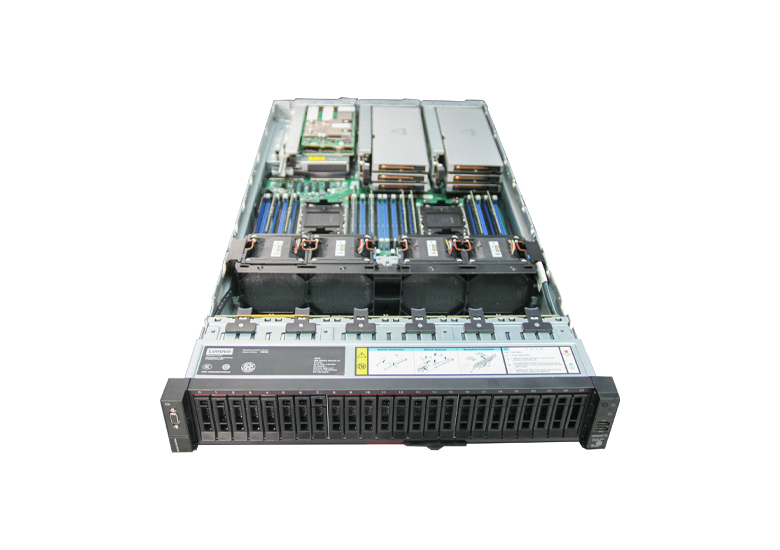

The Unixcloud meta machine all-in-one machine, based on Moore's thread MCCX server and lightweight native cloud platform, provides computing resources and scheduling platforms for artificial intelligence, rendering, and video, as well as support for the development and deployment of metaverse and digital twin application systems.

UXC3000 Technical Specifications for Cloud Servers
CPU2x Intel_6330_ Xeon_ 2.0GHz_28C_42M_ 205W
Memory Type

DDR4 RDIMM

The maximum memory frequency supported is 3200MHz. The nominal memory frequency, CPU model, and actual number of configured memory all influence the actual operating frequency of the memory stored in the cloud server. Example:

Dual CPU inserts 216 rams at a nominal frequency of 2933MHz, with the actual operating frequency also being 2933MHz.

Dual CPU inserts 1832 rams at a nominal frequency of 2933MHz, with a working frequency of 2666MHz.

Memory16x 32GB DDR4 3200 MHz ECC- RDIMM
Total memory capacityMaximum capacity is 2048GB (64GB*32).
USBFront 2 USB3.0 ports
2 USB3.0 ports on the back
VGA

2: 1 VGA interface in the front, 1 VGA interface in the back

It is recommended to use a standard VGA cable; otherwise, some VGA ports may not be able to output normally; the rear VGA port is recommended.

OS SSD2x 480G SATA 6Gbbps 2.5inch Hot Swap SSD (RAID 0,1)
Data SSD4x U.2/E1.S 3.84T NVMe PCle 4.0 x4 HS SSD
Hard disk slotIt can accommodate up to 12 3.5-inch slots (compatible with 2.5-inch hard drives) and SATASAS3.0 SSD or HDD. Two backplanes are standard, with a total of eight slots available.
Expansion slot

1*PCIEx8 dedicated storage slot is built-in.

Riser A (CPU0): 1*PCIE-E3.0x16+2*PCIE-E3.0x8, with the X16 slot only supporting the X8 speed. The top X16 slot is reserved for a four-port Gigabit network card.

1*PCIE-E3.0x16+2*PCIE-E3.0x8 riser B (CPU1)

CPU1 Riser C: 1*PCIE-E3.0x16;

When the PCIE board is not configured as expected, you must enter the BMC to switch the fan speed control strategy to balance mode.

Network1x NIC_25Gbps_ 2Port_LC_OEM_E810 _OCP3.0 _MM
Power Specifications4x 2200W Platinum 220VACor240VDC Hot- Swap Power Supply
Cooling fanThere are four system fan modules, each with two fans.
Management functionIPMI2.0, SOL, KVM Over IP, virtual media, and other advanced management functions are supported by an integrated BMC chip, and an external RJ45 10/100/1000M management port is provided.
GPU8x Mthreads S3000 32GB PCle Gen5 Passive GPU
Certified productCCC certification and China Energy Conservation Product Certification were obtained.
Chassis size87.8mm x 446mm x794mm
weight38KG
Work temperature5℃~35℃
Work humidity20%~80%
Storage temperature-40℃~60℃
Storage Humidity20%~93%
Work altitude0m~3000m
Specifications
GPU8x Mthreads S3000 32GB PCle Gen5 Passive GPU
CPU2x Intel_6330_ Xeon_ 2.0GHz_28C_42M_ 205W
RAM16x 32GB DDR4 3200 MHz ECC- RDIMM
OS SSD2x 480G SATA 6Gbbps 2.5inch Hot Swap SSD (RAID 0,1)
Data SSD4x U.2/E1.S 3.84T NVMe PCle 4.0 x4 HS SSD
Internet1x NIC_25Gbps_ 2Port_LC_OEM_E810 _OCP3.0 _MM
Power4x 2200W Platinum 220VACor240VDC Hot- Swap Power Supply
