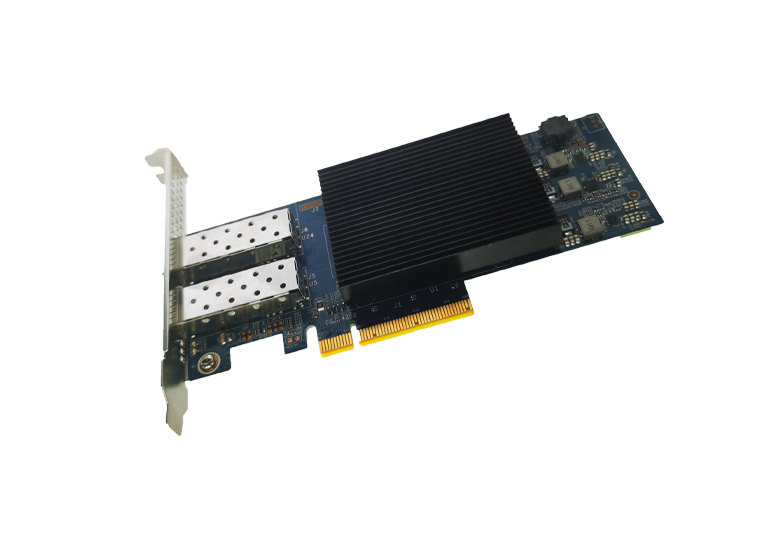

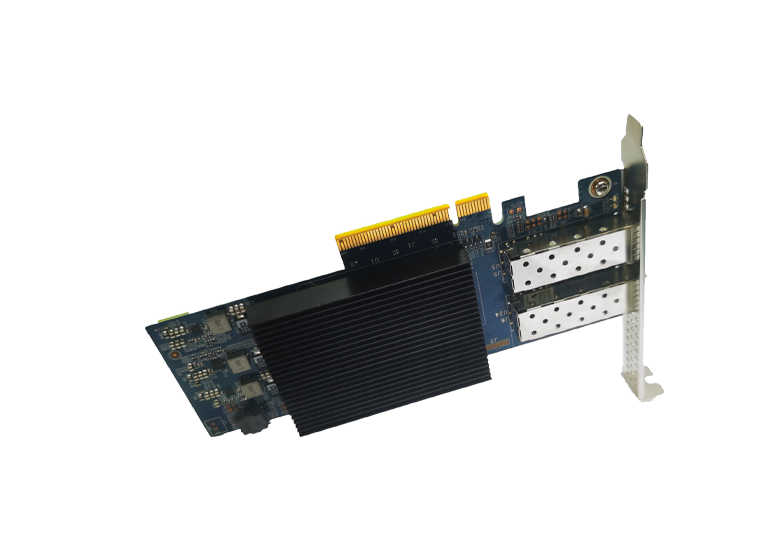

UXC1100 DatasheetUXC1100 is a PCI Express v3.0 x8 Double-port 10G SFP+ ethernet 2 Ports 10Gpbs SFP+ Network Card developed by Unixcloud based on Mucse RNP N10. This adapter can be compatible with PCIe x16 and PCIe v2.1 . The 2 Ports 10Gpbs SFP+ Network Card with Mucse ‘s independent intellectual property rights launched by Unixcloud has a fully integrated 10 Gigabit ethernet media access control (MAC) module and physical layer(PHY) module. It is widely used in network communication, and can also be used on PC servers,network security,embedded and other network devices.
Key Features
1. 10 Gigabit PCIe3.0 x8 2 Ports 10Gpbs SFP+ Network Card;
2. This 2 Ports 10Gpbs SFP+ Network Card is mainly designed to be applied to servers,network security and their application devices;
3. Mucse Double-port Ethernet MAC+PHY controller with 10Gb/s speed;
|
Specifications |
|
| Controller | Mucse RNP N10 |
| Baffle Height | Full-height & half-height bracket |
| Power Consumption | 9.5W |
| Media | Fiber |
| Fiber type | 10GBASE-SR,10GBASE-LR,10GBASE-Cu |
| System Support | CentOS / RHRL 7.1~8.5; |
| Ubuntu 16.10 or later; | |
| Kylin V10 / Kylin V4.0.2; | |
| UOS V20; | |
| Bus Type | PCIe v3.0 x8, compatible with PCIe x16 |
| Data rate | 10GbE |
| Connector | 2*10G SFP+ |
| Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiber |
| IEEE 802.3z Gigabit Ethernet | |
| IEEE 802.3x Full Duplex and flow control | |
| IEEE 802.1AS | |
| IEEE 802.1Q VLAN | |
| IEEE 802.3AD | |
| IEEE 802.3ad | |
| IEEE 802.3az – Energy Efficient Ethernet (EEE) | |
| IEEE 802.1P | |
| IEEE 802.3ac | |
| iSCSI | No |
| WoL | No |
| Jumbo Frames | 9.6KB |
| DPDK | No |
| PXE | No |
| IPsec\MACSec | Yes |
| Operating Temperature | 0 ℃ to 70 ℃ (32 ℉ to 158 ℉) |
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| Size(mm) | 162.3*68.5*1.6 (±1~2mm) |
| Weight(g) | 248 |
